BRASS HINGES
Product image

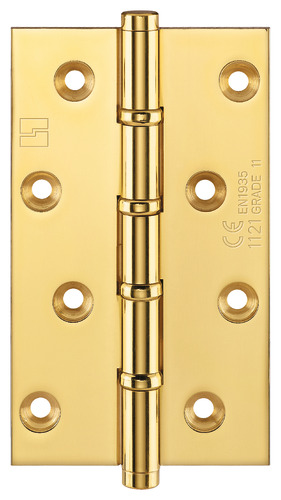

Brass Hinge - Ref. 1570 CE
suitable for medium to heavy weight flush doors
* Figures and finishes similar
Brass Hinge - Ref. 1570 CE
suitable for medium to heavy weight flush doors
Product features
Technical details
Load capacity
80.0 kg
Knuckle diameter
11.0 mm
Overall length
127.0 mm
Overall width
75.0 mm
Material thickness
4.0 mm
Screws
10.9 x 32.0 mm
Screws (Gauge)
12.0 g
Note
Quality marks
CE certification
UKCA certificationClassification code
EN 1935 / EAD3
7
4
1 *1
1
4
0
11
*1 Test evidence for functional doors to be achieved with full door sets and assemblies.
Item versions
Aged Brass (UK 501)
Antique Brass (UK 502)
Antique nickel (UK 503)
Copper Bronze (UK 505)
Copper (UK 506)
Honeycombe (UK 507)
Imitation Bronze (UK 508)
Midnight (UK 509)
Polished Chrome (UK 511)
Polished & Lacquered (UK 512)
Polished Nickel (UK 513)
Satin Brass & Lacquered (UK 514)
Satin Chrome (UK 515)
Satin nickel (UK 516)
Burnished Brass (UK 522)
Polished Imitation Bronze (UK 523)
