EVO

EV 835E40

for framed doors

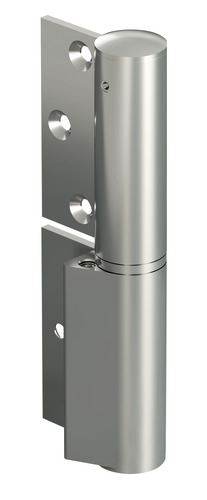

Product image
  • Views / Videos
  • Finishes
  • Drawings
* Figures and finishes similar

EV 835E40

for framed doors

Product features

Sources of supply

Technical details

Load capacity
120.0 kg
Rebate depth
30.0 - 50.0 mm
Opening angle
180°
Hold open
+ 90°
Automatic closing
+ 80°
Temperature range
- 15.0°C to + 40.0°C
Min. door width
800.0 mm
Max. door width
1200.0 mm

Suitable for

Type of door leaf
aluminium, PVCu, metal

Note

Quality marks

TÜV certification

Classification code

EN 1154
3
8
3/6 *1
0
1
4
*1 The front digit indicates the torques achieved and the efficiency, the rear digit indicates the maximum door weight in accordance with EN 1154:2006. All other technical characteristics are specified in the technical data sheets.
Classification code

Item versions

EV1 satin silver natural, anodized 20 micron (CO 002)
satin black, anodized (CO 005)
similar satin stainless steel, PVD coated (CO 013)
