EVO

EV 835E50

for single action (glass-glass) residential, heavy-duty and outer glass doors

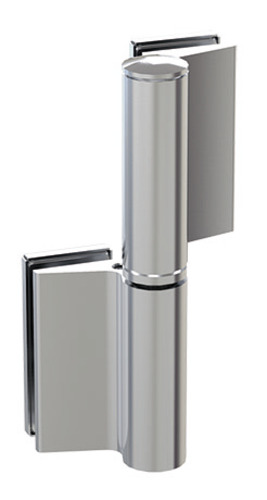

Product image
  • Views / Videos
  • Finishes
  • Drawings
* Figures and finishes similar

EV 835E50

for single action (glass-glass) residential, heavy-duty and outer glass doors

Product features

Sources of supply

Technical details

Load capacity
120.0 kg
Opening angle
180°
Automatic closing
+ 80°
Glass thickness
8 - 21,52 mm
Temperature range
- 15.0°C to + 40.0°C
Min. door width
800.0 mm
Max. door width
1000.0 mm

Suitable for

Type of door leaf
glass

Note

Descriptive text

Quality marks

TÜV certification

Classification code

EN 1154
3
8
3/6 *1
0
1
4
*1 The front digit indicates the torques achieved and the efficiency, the rear digit indicates the maximum door weight in accordance with EN 1154:2006. All other technical characteristics are specified in the technical data sheets.
Classification code

Item versions

EV1 satin silver natural, anodized 20 micron (CO 002)
satin black, anodized (CO 005)
similar satin stainless steel, PVD coated (CO 013)
polished chromed (CO 014)
matt gray, liquid electrostatic coated (CO 015)
similar polished gold, PVD coated (CO 016)
similar matt gold, coated (CO 017)
RAL 9005 jet black matt, liquid electrostatic coated (CO 062)
RAL 9010 pure white matt, liquid electrostatic coated (CO 088)
RAL 9016 traffic white matt, liquid electrostatic coated (CO 095)

Combinations

EV 835E50 SOL
