TRITECH
Product image

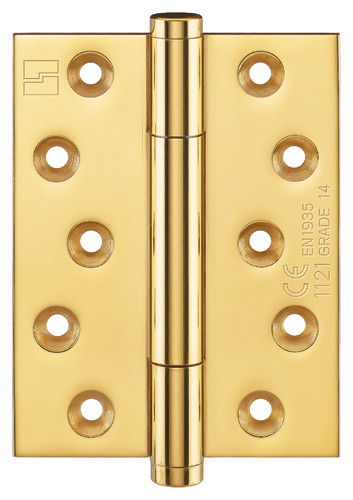

TRITECH - Ref. 1750 CE
suitable for heavy weight flush doors tested to BS EN 1935 Grade 14 - 160 kg
* Figures and finishes similar
TRITECH - Ref. 1750 CE
suitable for heavy weight flush doors tested to BS EN 1935 Grade 14 - 160 kg
Product features
Technical details
Load capacity
160.0 kg
Knuckle diameter
13.0 mm
Overall length
100.0 mm
Overall width
76.2 mm
Material thickness
3.5 mm

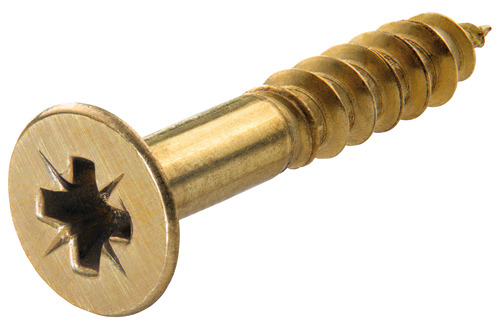

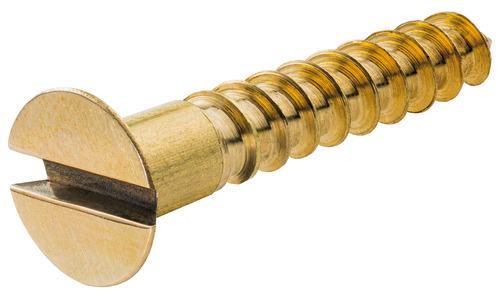

Screws
9.5 x 32.0 mm
Screws (Gauge)
10.0 g
Note
Quality marks
CE certification
UKCA certificationClassification code
EN 1935 / EAD4
7
7
1 *1
1
4
0
14
*1 Test evidence for functional doors to be achieved with full door sets and assemblies.
Item versions

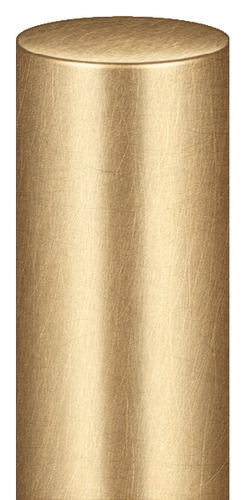

Aged Brass (UK 501)
Antique Brass (UK 502)

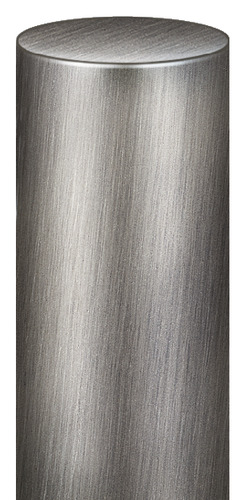

Antique nickel (UK 503)
Copper Bronze (UK 505)
Copper (UK 506)
Honeycombe (UK 507)

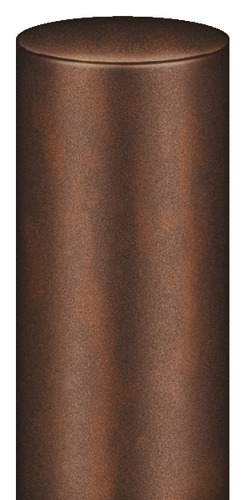

Imitation Bronze (UK 508)
Midnight (UK 509)

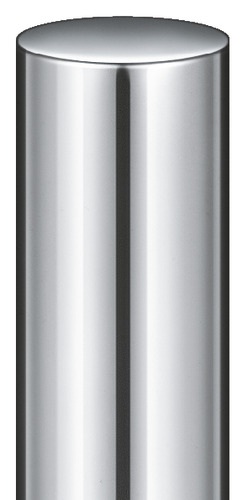

Polished Chrome (UK 511)

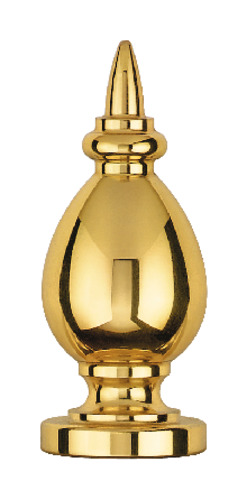

Polished & Lacquered (UK 512)

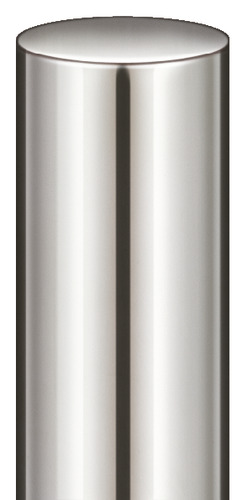

Polished Nickel (UK 513)

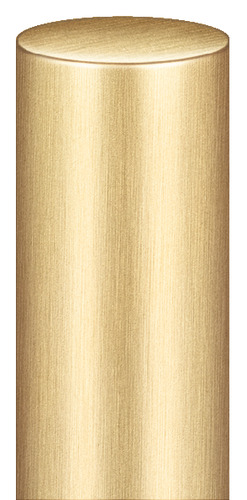

Satin Brass & Lacquered (UK 514)

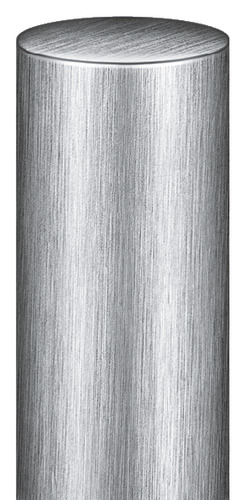

Satin Chrome (UK 515)

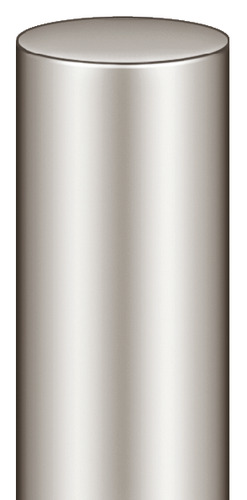

Satin nickel (UK 516)
PVD Brass (UK 517)
PVD Copper rose (UK 518)
PVD Matt black (UK 519)
PVD Rainbow (UK 520)
PVD Stainless steel effect (UK 521)

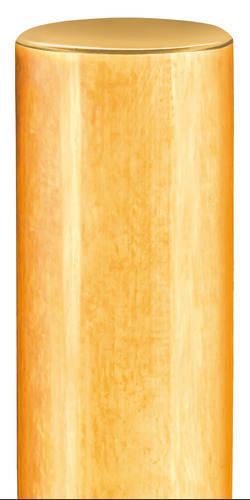

Burnished Brass (UK 522)

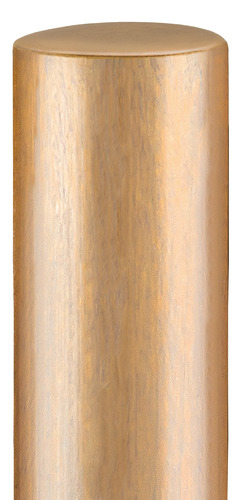

Polished Imitation Bronze (UK 523)
